CERTUS FLEX syringe kits
Part number: CERT.21612
Image is representative (may not be specific item).
$355.00
Syringe kits for CERTUS FLEX liquid dispensers
Replacement syringe kits and components for your CERTUS FLEX liquid dispenser. Kits are best used for precious fluid dispensing and applications where low dead volume is critical.
All materials are autoclave safe and compatible with most fluids, including DMSO (see specifications below).
Product specifications
Syringe adapter materials: PEEK, FPM o-ring

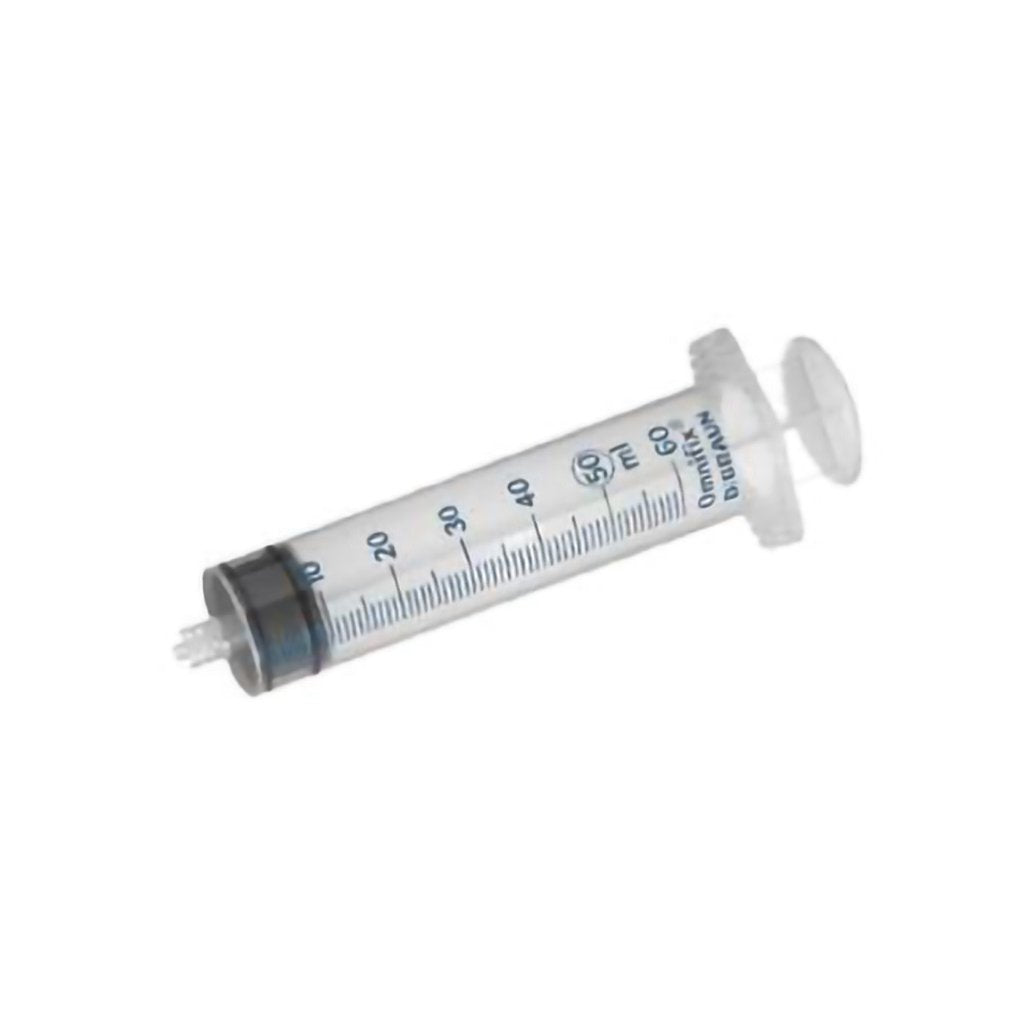

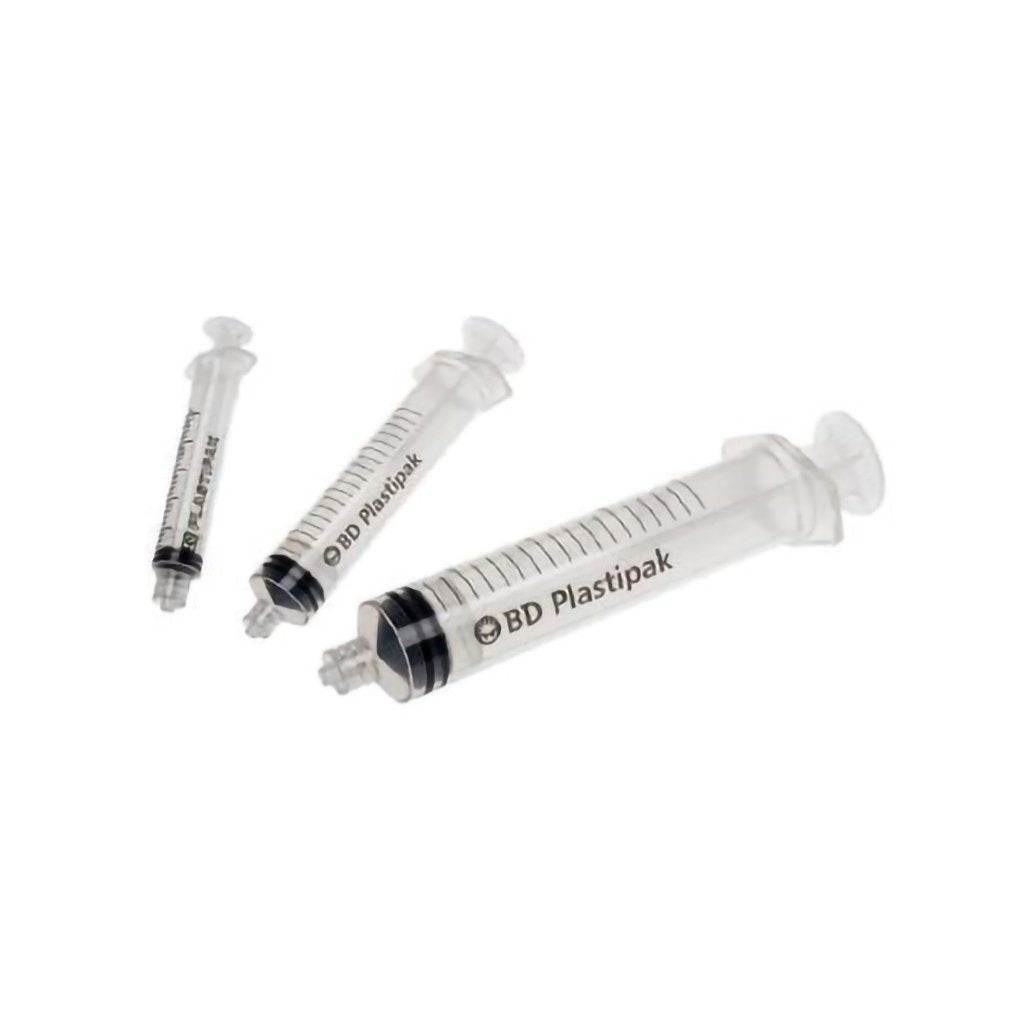

Disposable syringe material: Polypropylene (PP)

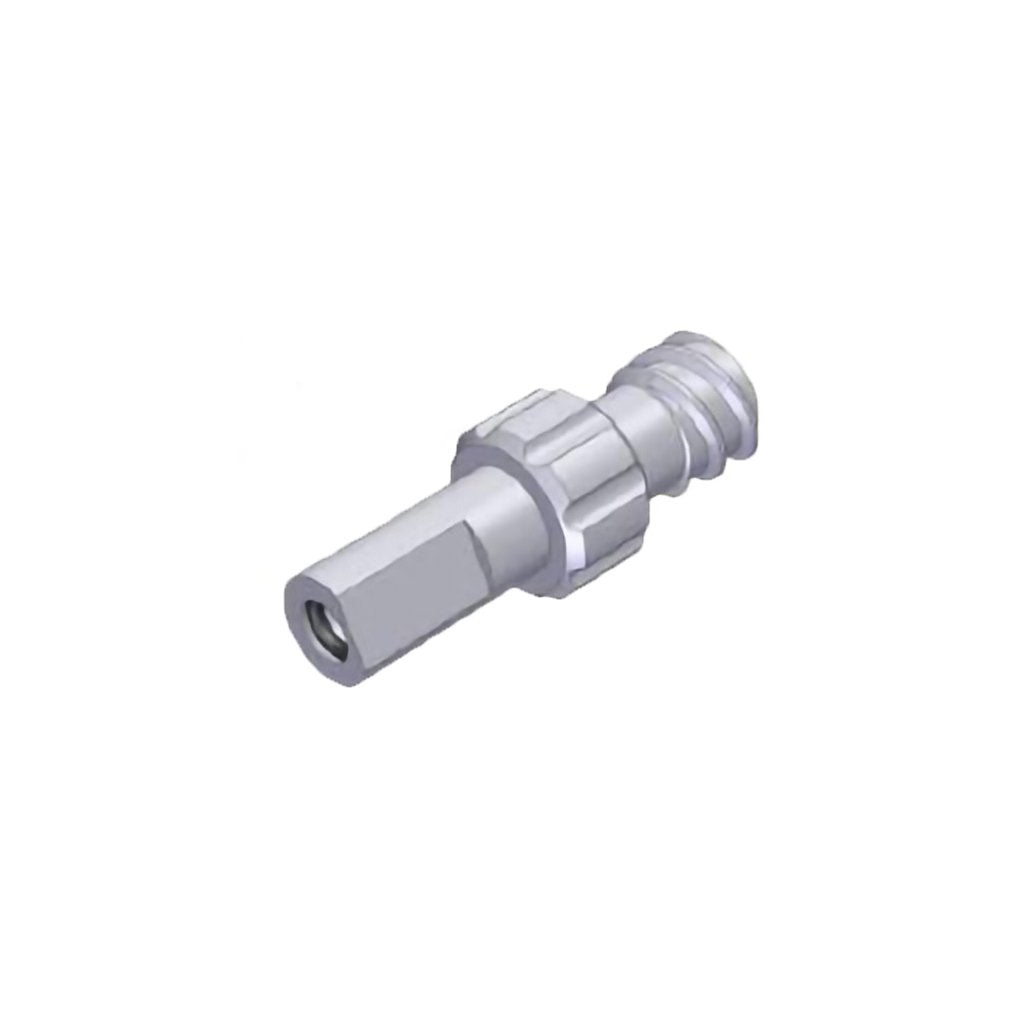

Luer lock channel inlet adapter materials: Stainless steel, FFKM/FFPM o-ring
Related Items
CERTUS FLEX bottle kits
$500.00
Bottle kits for CERTUS FLEX liquid dispensers
Replacement bottle kits (bottles or conical tubes) and components for your CERTUS FLEX liquid dispenser. Kits are best used for high-throughput and larger volume dispensing, as well as applications where fluids will be set up on the system for extended periods.
All materials are autoclave safe and compatible with most fluids, including DMSO (see specifications below).
Product specifications
Bottle head materials: PTFE, PEEK, FKM, stainless steel
Tubing kit: 700 mm length FEP tubing (1.58 mm ID, 3.17 mm OD), FFKM/FFPM o-ring, SS connector, PEEK male nut, Tefzel/steel ferrule.
Immersion filter materials: Stainless steel body, PEEK cap, 37μ mesh SS filter
View full product details
CERTUS FLEX SMLD 300GC valves
$527.00
Valves for CERTUS FLEX liquid dispensers
Gyger SMLD 300GC microvalves are the core technology of the CERTUS FLEX liquid dispensers.
Product specifications
The microvalves are made of the following materials: Stainless Steels 1.4404 (A316L), 1.4301 (A301), 1.4310 (A304), 1.4113 IM / 1.4105 IL (A430F); PEEK, sapphire, ruby.
Microvalve selection is based on the properties of the fluids you plan to dispense, the volumes you wish to dispense, and the plate format you intend to use. Use the following table as a general guide, or reach out to have our experts help you pick the perfect one.
Proper care and use of your valves
With the proper use and cleaning of your valves, they should last 6 months to a year. After dispensing acidic, sticky or crystallizing substances, the microvalves should be thoroughly flushed immediately after use. Additionally, you may sonicate your valves, backflush them, and autoclave them, as your needs require.
?Estimated lead time is 1-2 weeks.
View full product details
CERTUS FLEX liquid dispenser
Contact a workflow specialist for your specific needs
Microdispensing at its best. Flexibility to use the solvents you need, across an ideal range of dispensing volumes, at speeds that keep your laboratory flowing.
CERTUS FLEX is a modular system in two basic versions, with 5 or 8 individually controllable channels. These channels can be equipped with different valves to facilitate ideal dispensing of substances with different physical properties.
Features and benefits
Unparalleled accuracy, precision and flexibility
The CERTUS FLEX has been developed for contactless dispensing of a broad range of liquid substances and large molecules, using Gyger's renowned microvalve technology and air pressure control, giving you maximum precision and flexibility.
Flexible fluid uptake options to meet your exact needs
Fluids can be supplied to the dispenser from bottles and tubes for bulk dispensing, or from syringes to achieve the lowest dead volumes. This allows you to more effectively dispense smaller volumes and high value substances from luer-lock syringes (from 3 - 60 mL).
Unique microvalves for more dispensing operations, with less dead volume
Over 500 million cycles without losing accuracy.
More
-
CERTUS FLEX
The CERTUS FLEX liquid dispenser delivers volumes in single doses, in contrast to many other techniques, allowing you to have the fastest delivery and the longest valve life. With an assortment of valve sizes, you can dispense a wide range of fluid types:- Aqueous solutions
- Organics
- DMSO
- Solvents
- Detergents
- Buffers
- Cells
- DNA
- Proteins
- Oils (with viscosity up to 200 mPas)
-
SiLA compliant for seamless process integration
Our SiLA automation interface allows you to integrate your CERTUS FLEX into your laboratory automation workflow with confidence. Drivers are already available for most major integration software, and more are being developed all the time.CERTUS CONTROL PC software is both intuitive and easy to program
With a windows-based user interface, the CERTUS CONTROL software has a familiar look and feel, making everyday use straightforward. Both basic and complex dispense patterns can be created, with the software, or by importing CSV, to allow the Flex to compliment your workflow seamlessly. -
Service you can trust
Our Gyger manufacturer-certified service team is ready to keep your CERTUS FLEX at its peak performance.Expert training
We have the expertise and experience with microdispensing across many different laboratory environments. We can guide you to the best system set-up and protocols for your laboratory's workflows.
