Customize CapLC for Your Application
MyCapLC™ Kit enables you to create your own capillary columns with your HPLC pump and the simple packing instructions. You can easily pack your own capillary columns in a matter of hours.
Features and benefits
- DIY capillary column packing, no special pumps or instrumentation required.
- Quick, convenient and cost effective solution for capillary columns.
- Robust and easy to pack hardware
Recommended applications
Perfect for life sciences and omic analysis.
Product specifications
MyCapLC Kit (suitable to pack three columns):
- 0.1 g C18 3 µm 200 Å
- 1 x Slurry reservoir (50 mm x 2.1 mm ID column tubing)
- 2 x End fittings with inserted PEEK sealing rings
- 1 x PEEK Fingertight fitting
- 3 x Column bodies (1/16" OD PEEKsil®, lengths from 50 mm - 150 mm and IDs from 150 µm - 530 µm)
- 6 x Connection capillaries (1/32" and 1/16" OD options available in 50 µm ID. Inlet length is 250 mm. Outlet length is 100 mm)
- 6 x Male unions (1/16")
- 6 x Female unions (1/32")
- 6 x PEEK double ended ferrules (1/16"-1/32") with 0.5 um woven mesh filters
- 2 x Wrenches
More
Please refer to the part number list for more items.
15 products
![Image representing MyCapLC Kits](http://www.trajanscimed.com/cdn/shop/products/tubing_hplc_kits_mycaplc_kit_image_ff527dd4-44dc-47b8-a564-640805f2caaa.jpg?v=1571276974&width=1024)
MyCapLC Kit Containing Components to Assemble Three Complete 1/16 " OD x 150 µm ID x 100 mm Length UHPLC Columns, with 250 mm Inlet and 100 mm Outlet Tails 1/32 " OD x 50 µm ID
Collections: All, Analytical, MyCapLC Kits, Select by instrument - Analytical
![Image representing MyCapLC Kits](http://www.trajanscimed.com/cdn/shop/products/tubing_hplc_kits_mycaplc_kit_image_c7ea2c02-7ea3-4e09-9cee-cc7e16fec71d.jpg?v=1571276974&width=1024)
MyCapLC Kit Containing Components to Assemble Three Complete 1/16 " OD x 150 µm ID x 100 mm Length UHPLC Columns, with 250 mm Inlet and 100 mm Outlet Tails 360 µm OD x 50 µm ID
Collections: All, Analytical, MyCapLC Kits, Select by instrument - Analytical
![Image representing MyCapLC Kits](http://www.trajanscimed.com/cdn/shop/products/tubing_hplc_kits_mycaplc_kit_image_88a56040-9f64-4ec3-896e-f217aea147e6.jpg?v=1571276974&width=1024)
MyCapLC Kit Containing Components to Assemble Three Complete 1/16 " OD x 150 µm ID x 150 mm Length UHPLC Columns, with 250 mm Inlet and 100 mm Outlet Tails 1/32 " OD x 50 µm ID
Collections: All, Analytical, MyCapLC Kits, Select by instrument - Analytical
![Image representing MyCapLC Kits](http://www.trajanscimed.com/cdn/shop/products/tubing_hplc_kits_mycaplc_kit_image_ffe40148-7bb3-4f61-b9f2-a93f69442ae8.jpg?v=1571276974&width=1024)
MyCapLC Kit Containing Components to Assemble Three Complete 1/16 " OD x 150 µm ID x 150 mm Length UHPLC Columns, with 250 mm Inlet and 100 mm Outlet Tails 360 µm OD x 50 µm ID
Collections: All, Analytical, MyCapLC Kits, Select by instrument - Analytical
![Image representing MyCapLC Kits](http://www.trajanscimed.com/cdn/shop/products/tubing_hplc_kits_mycaplc_kit_image_c82fc63d-2a88-49aa-959b-fbd6358094b7.jpg?v=1571276973&width=1024)
MyCapLC Kit Containing Components to Assemble Three Complete 1/16 " OD x 150 µm ID x 50 mm Length UHPLC Columns, with 250 mm Inlet and 100 mm Outlet Tails 1/32 " OD x 50 µm ID
Collections: All, Analytical, MyCapLC Kits, Select by instrument - Analytical
![Image representing MyCapLC Kits](http://www.trajanscimed.com/cdn/shop/products/tubing_hplc_kits_mycaplc_kit_image_da615447-a142-4d9b-a989-d1d4319ebc68.jpg?v=1571276973&width=1024)
MyCapLC Kit Containing Components to Assemble Three Complete 1/16 " OD x 150 µm ID x 50 mm Length UHPLC Columns, with 250 mm Inlet and 100 mm Outlet Tails 360 µm OD x 50 µm ID
Collections: All, Analytical, MyCapLC Kits, Select by instrument - Analytical
![Image representing MyCapLC Kits](http://www.trajanscimed.com/cdn/shop/products/tubing_hplc_kits_mycaplc_kit_image_d93556a8-90bc-4171-aac4-f213a6e308ea.jpg?v=1571276974&width=1024)
MyCapLC Kit Containing Components to Assemble Three Complete 1/16 " OD x 300 µm ID x 100 mm Length UHPLC Columns, with 250 mm Inlet and 100 mm Outlet Tails 1/32 " OD x 50 µm ID
Collections: All, Analytical, MyCapLC Kits, Select by instrument - Analytical
![Image representing MyCapLC Kits](http://www.trajanscimed.com/cdn/shop/products/tubing_hplc_kits_mycaplc_kit_image_aa69e5f7-311c-4a70-88de-afb47330186d.jpg?v=1571276974&width=1024)
MyCapLC Kit Containing Components to Assemble Three Complete 1/16 " OD x 300 µm ID x 100 mm Length UHPLC Columns, with 250 mm Inlet and 100 mm Outlet Tails 360 µm OD x 50 µm ID
Collections: All, Analytical, MyCapLC Kits, Select by instrument - Analytical
![Image representing MyCapLC Kits](http://www.trajanscimed.com/cdn/shop/products/tubing_hplc_kits_mycaplc_kit_image_ead3f08e-5ad6-4a87-bfa3-6b5218b19054.jpg?v=1571276974&width=1024)
MyCapLC Kit Containing Components to Assemble Three Complete 1/16 " OD x 300 µm ID x 150 mm Length UHPLC Columns, with 250 mm Inlet and 100 mm Outlet Tails 1/32 " OD x 50 µm ID
Collections: All, Analytical, MyCapLC Kits, Select by instrument - Analytical
![Image representing MyCapLC Kits](http://www.trajanscimed.com/cdn/shop/products/tubing_hplc_kits_mycaplc_kit_image_80efa20d-4f77-400a-a922-fd55bac961d8.jpg?v=1571276974&width=1024)
MyCapLC Kit Containing Components to Assemble Three Complete 1/16 " OD x 300 µm ID x 150 mm Length UHPLC Columns, with 250 mm Inlet and 100 mm Outlet Tails 360 µm OD x 50 µm ID
Collections: All, Analytical, MyCapLC Kits, Select by instrument - Analytical
![Image representing MyCapLC Kits](http://www.trajanscimed.com/cdn/shop/products/tubing_hplc_kits_mycaplc_kit_image_933b3381-175d-4674-8911-980b76159729.jpg?v=1571276974&width=1024)
MyCapLC Kit Containing Components to Assemble Three Complete 1/16 " OD x 300 µm ID x 50 mm Length UHPLC Columns, with 250 mm Inlet and 100 mm Outlet Tails 1/32 " OD x 50 µm ID
Collections: All, Analytical, MyCapLC Kits, Select by instrument - Analytical
![Image representing MyCapLC Kits](http://www.trajanscimed.com/cdn/shop/products/tubing_hplc_kits_mycaplc_kit_image.jpg?v=1571276973&width=1024)
MyCapLC Kit Containing Components to Assemble Three Complete 1/16 " OD x 300 µm ID x 50 mm Length UHPLC Columns, with 250 mm Inlet and 100 mm Outlet Tails 360 µm OD x 50 µm ID
Collections: All, Analytical, MyCapLC Kits, Select by instrument - Analytical
![Image representing MyCapLC Kits](http://www.trajanscimed.com/cdn/shop/products/tubing_hplc_kits_mycaplc_kit_image_d5d9027e-378e-4527-97b6-f037c1367b88.jpg?v=1571276974&width=1024)

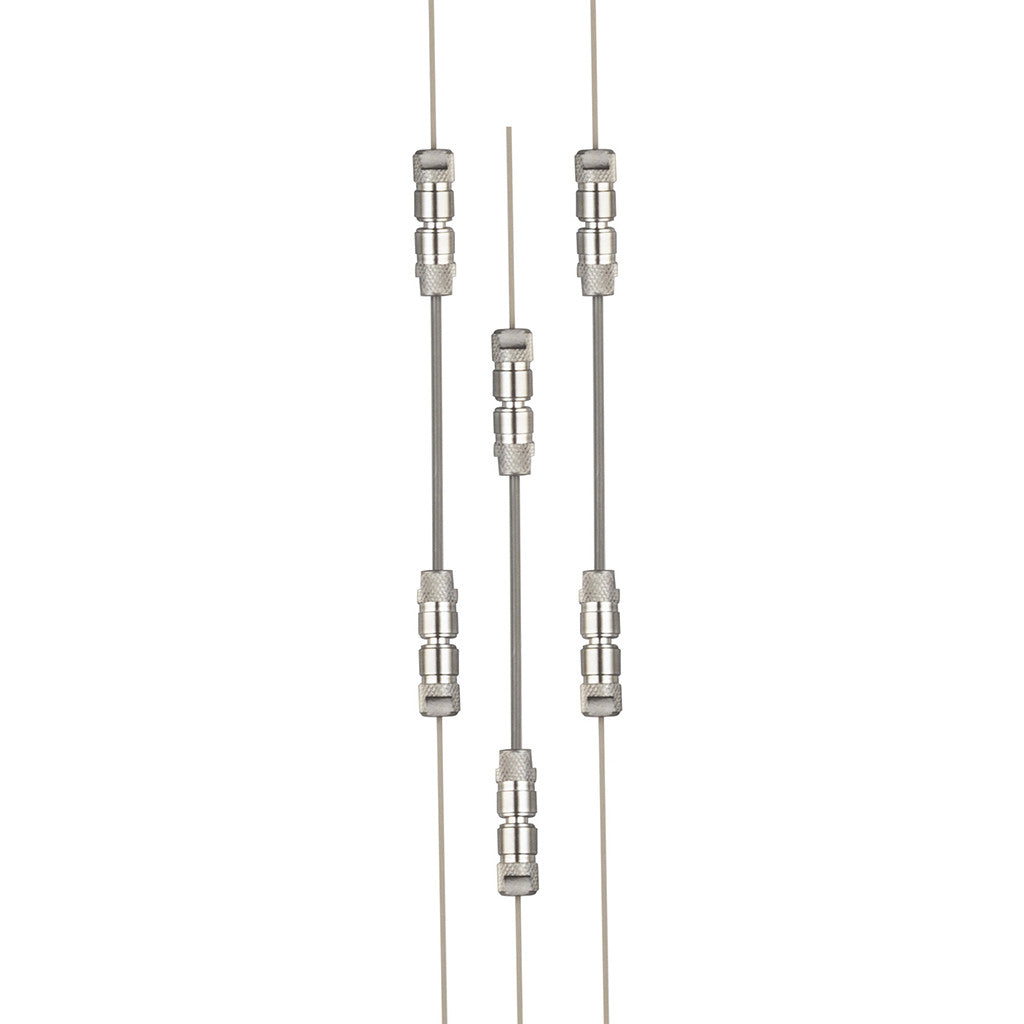

MyCapLC Kit Containing Components to Assemble Three Complete 1/16 " OD x 530 µm ID x 100 mm Length UHPLC Columns, with 250 mm Inlet and 100 mm Outlet Tails 1/32 " OD x 50 µm ID
Collections: All, Analytical, MyCapLC Kits, Select by instrument - Analytical
![Image representing MyCapLC Kits](http://www.trajanscimed.com/cdn/shop/products/tubing_hplc_kits_mycaplc_kit_image_af6132f1-421a-41cd-bbd9-1c85f1c75c58.jpg?v=1571276974&width=1024)
MyCapLC Kit Containing Components to Assemble Three Complete 1/16 " OD x 530 µm ID x 150 mm Length UHPLC Columns, with 250 mm Inlet and 100 mm Outlet Tails 1/32 " OD x 50 µm ID
Collections: All, Analytical, MyCapLC Kits, Select by instrument - Analytical
![Image representing MyCapLC Kits](http://www.trajanscimed.com/cdn/shop/products/tubing_hplc_kits_mycaplc_kit_image_878a13ec-256b-4a4b-a2fb-a11d9bd04f2d.jpg?v=1571276974&width=1024)
MyCapLC Kit Containing Components to Assemble Three Complete 1/16 " OD x 530 µm ID x 50 mm Length UHPLC Columns, with 250 mm Inlet and 100 mm Outlet Tails 1/32 " OD x 50 µm ID
Collections: All, Analytical, MyCapLC Kits, Select by instrument - Analytical
