The comprehensive range of SGE® syringes are designed and tested to meet critical specifications. We combine precision manufacturing of components and meticulous assembly, to produce syringes of the highest quality.
Features and benefits
- Minimal carryover, adhesive contamination and sample interaction.
- Gas tight syringes with PTFE plunger tip for optimum sealing.
- Resistant to wide range of solvents.
- Plunger protection on 5 μL and 10 μL syringes helps prevent plunger bending during injection.
- Syringe valves allow fluid to be stored in the syringe without contamination.
Recommended applications
- Manual GC and LC sample injection.
- Liquid dispensing.
Product specifications
- Fixed and removable needle
- Luer Lock and Luer Tip
- Syringes with valves
|
Specifications |
|
|---|---|
|
Borosilicate glass barrel outer diameter |
5 μL to 10 μL = 6.5 mm 25 μL to 500 μL = 8 mm 1 mL = 9 mm 2.5 mL = 11 mm 5 mL = 14 mm 10 mL = 18 mm 25 mL = 27 mm 50 mL = 32.8 mm 100 mL = 40.8 mm |
|
Scale length |
5 μL to 10 μL = 54.1 mm 25 μL to 25 mL = 60 mm 50 mL = 84.2 mm 100 mL = 104 mm |
More
Please refer to the part number list for more items.
44 products

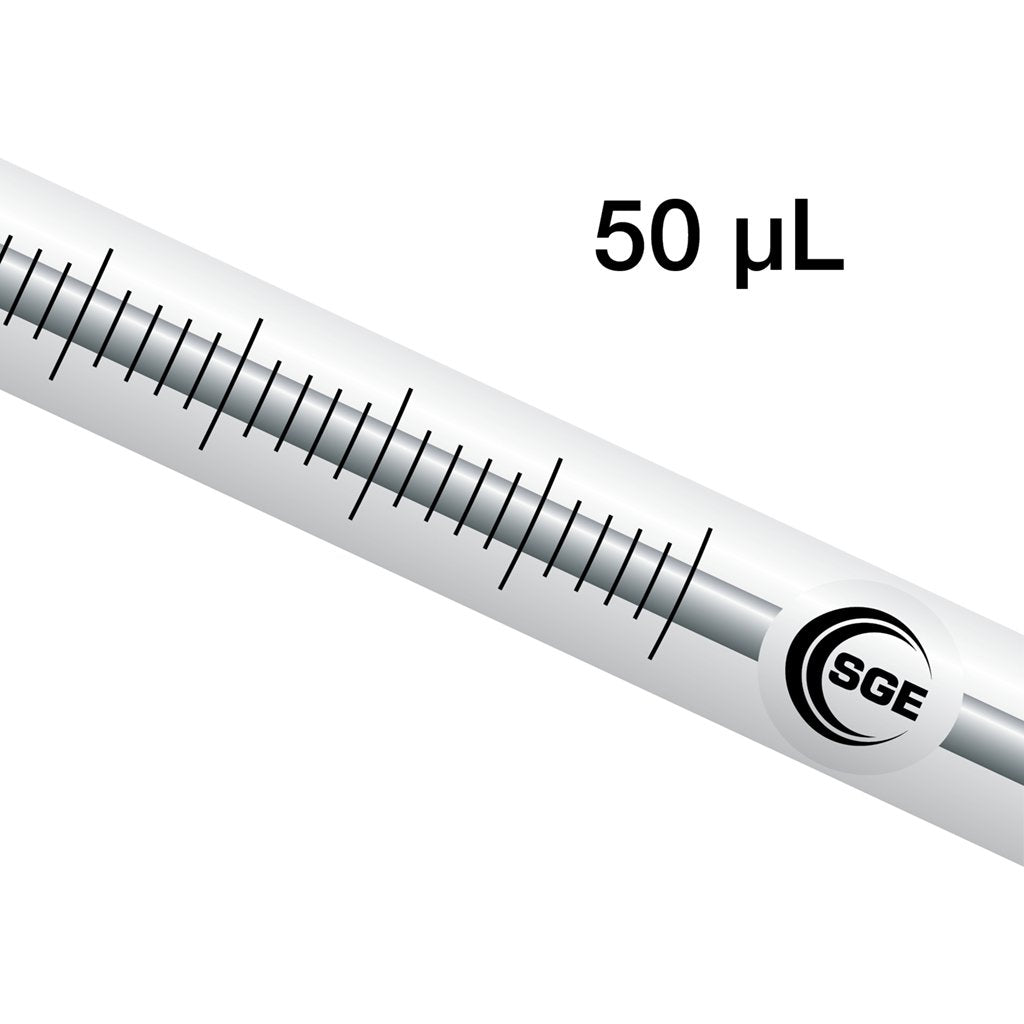

50 µL fixed needle syringe with 5 cm 0.5 mm OD bevel tipped needle
Collections: All, Analytical, Manual syringes, Select by instrument - Analytical, SGE manual syringes, Syringes
50 µL fixed needle syringe with 5 cm 0.5 mm OD bevel tipped needle
Collections: All, Analytical, Manual syringes, Select by instrument - Analytical, SGE manual syringes, Syringes
50 µL removable needle syringe with 5 cm 0.5 mm OD bevel tipped needle
Collections: All, Analytical, Manual syringes, Select by instrument - Analytical, SGE manual syringes, Syringes
50 µL removable needle syringe with 5 cm 0.5 mm OD bevel tipped needle
Collections: All, Analytical, Manual syringes, Select by instrument - Analytical, SGE manual syringes, Syringes
