Part Number List - GC unions
Download: Part Number List - GC unions [PDF]
Also see: Product Data Sheet - GC unions
Find in table:
| Part number | Part description and detail |
|---|---|
| 18500002 | Spanner 3/16" x 1/4" AF |
| Glass lined stainless steel | |
| 103420 | Glass lined stainless steel union with 0.5 mm ID |
| 1034200 | Glass lined stainless steel union with 0.8 mm ID |
| 1236300 | Glass lined stainless steel bulkhead union with 0.5 mm ID and 0.35 mm restriction at one end |
| 1236302 | Glass lined stainless steel bulkhead union with 0.4 mm ID and 0.25 mm restriction at one end |
| 1236306 | Glass lined stainless steel bulkhead union with 0.8 mm ID (no restriction) |
| Stainless steel mini unions | |
| 103430 | Stainless steel mini unions 0.3 mm ID |
| 103431 | Stainless steel mini unions 0.4 mm ID |
| 103432 | Stainless steel mini unions 0.5 mm ID |
| 103433 | Stainless steel mini unions 0.8 mm ID |
| Stainless steel | |
| 103330 | Stainless steel union - 1/16" x 1/16" |
| 103418 | Stainless steel union tee 1/16" x 1/16" x 1/16" |
| 1034180 | Stainless steel union tee 1/8" x 1/16" x 1/16" |
| 1034183 | Stainless steel union tee 1/4" x 1/16" x 1/16" |
| 101270 | Stainless steel union - 1/4" x 1/4" |
| 1034187 | Stainless steel union cross - all 1/16" |
| 101340 | Stainless steel bulkhead union - 1/16" x 1/16" |
| 101290 | Stainless steel reducing union - 1/8" to 1/16" |
| 101300 | Stainless steel reducing bulkhead union - 1/8" x 1/16" |
| 101230 | Stainless steel reducing union - 1/4" to 1/16" |
| 1034604 | Stainless steel 1/16" male-female connector and ferrules |
| 1034605 | Stainless steel 1/16" male-female tee connector and ferrules |
| 103461 | Stainless steel adaptor for 1/16" female Swagelok® fittings |
| SilTite | |
| 073550 | SilTite mini union 0.4 mm ID |
| 073551 | SilTite mini union 0.5 mm ID |
| 073552 | SilTite mini union 0.8 mm ID |
| 073553 | SilTite nuts for all mini unions, PK5 |
| 073554 | SilTite mini union 0.8 mm ID with ferrules for 1/32" columns |
| 073560 | SilTite µ-union for joining 0.1 - 0.25 mm and 0.1 - 0.25 mm columns/fused silica |
| 073561 | SilTite µ-union for joining 0.1 - 0.25 mm and 0.32 mm columns/fused silica |
| 073562 | SilTite µ-union for joining 0.1 - 0.25 mm and 0.53 mm columns/fused silica |
| 073563 | SilTite µ-union for joining 0.32 mm and 0.32 mm columns/fused silica |
| 073564 | SilTite µ-union for joining 0.32 mm and 0.53 mm columns/fused silica |
| 073565 | SilTite µ-union for joining 0.53 mm and 0.53 mm columns/fused silica |
| Replacement parts | |
| 073470 | Replacement SilTite mini union ferrules for 0.1 - 0.25 mm ID columns/fused silica, PK10 |
| 073471 | Replacement SilTite mini union ferrules for 0.32 mm ID columns/fused silica, PK10 |
| 073472 | Replacement SilTite mini union ferrules for 0.45 - 0.53 mm ID columns/fused silica, PK10 |
| 073473 | Replacement SilTite mini union ferrules for for 1/32" columns, PK11 |
| 073566 | Replacement SilTite µ-union ferrules for joining 0.1 - 0.25 mm and 0.1 - 0.25 mm columns/fused silica, PK10 |
| 073567 | Replacement SilTite µ-union ferrules for joining 0.1 - 0.25 mm and 0.32 mm columns/fused silica, PK10 |
| 073568 | Replacement SilTite µ-union ferrules for joining 0.1 - 0.25 mm and 0.53 mm columns/fused silica, PK10 |
| 073572 | Replacement SilTite µ-union only (no ferrules) for joining 0.1 - 0.32 mm and 0.1 - 0.32 mm columns/fused silica, PK5 |
| 073573 | Replacement SilTite µ-union only (no ferrules) for joining 0.1 - 0.32 mm and 0.53 mm columns/fused silica, PK5 |
| 073569 | Replacement SilTite µ-union ferrules for joining 0.32 mm and 0.32 mm columns/fused silica, PK10 |
| 073570 | Replacement SilTite µ-union ferrules for joining 0.32 mm and 0.53 mm columns/fused silica, PK10 |
| 073571 | Replacement SilTite µ-union ferrules for joining 0.53 mm and 0.53 mm columns/fused silica, PK10 |
Part Number List - ProteCol® HPLC unions
Download: Part Number List - ProteCol® HPLC unions [PDF]
Also see: Product Data Sheet - ProteCol® HPLC unions
Find in table:
| Part number | Part description and detail |
|---|---|
| ProteCol stainless steel unions | |
| 211010 | 1/16" to 1/16" ProteCol stainless steel union (1 union only - no ferrules) |
| 212006 | 1/16" to 1/16" ProteCol stainless steel unions (2 unions and 4 PEEK ferrules) |
| 212007 | 1/16" to 1/32" ProteCol stainless steel unions (2 unions and 4 PEEK ferrules) |
| 212008 | 1/16" to 0.36 mm ProteCol stainless steel unions (2 unions and 4 PEEK ferrules) |
| 222005 | 1/32" to 1/32" ProteCol stainless steel unions (2 unions and 4 PEEK ferrules) |
| 222006 | 1/32" to 0.36 mm ProteCol stainless steel unions (2 unions and 4 PEEK ferrules) |
| 222007 | 0.36 mm to 0.36 mm ProteCol stainless steel unions (2 unions and 4 PEEK ferrules) |
| ProteCol PEEK unions | |
| 212009 | 1/16" to 1/16" ProteCol PEEK unions (2 unions and 4 PEEK ferrules) |
| 212010 | 1/16" to 1/32" ProteCol PEEK unions (2 unions and 4 PEEK ferrules) |
| 212011 | 1/16" to 0.36 mm ProteCol PEEK unions (2 unions and 4 PEEK ferrules) |
| 222009 | 1/32" to 1/32" ProteCol PEEK unions (2 unions and 4 PEEK ferrules) |
| 222010 | 1/32" to 0.36 mm ProteCol PEEK unions (2 unions and 4 PEEK ferrules) |
| 222011 | 0.36 mm to 0.36 mm ProteCol PEEK unions (2 unions and 4 PEEK ferrules) |
| Replacement parts | |
| 213006 | 1/16" to 1/16" ProteCol PEEK ferrules PK5 |
| 213007 | 1/16" to 1/32" ProteCol PEEK ferrules PK5 |
| 213008 | 1/16" to 0.36 mm ProteCol PEEK ferrules PK5 |
| 223005 | 1/32" to 1/32" ProteCol PEEK ferrules PK5 |
| 223006 | 1/32" to 0.36 mm ProteCol PEEK ferrules PK5 |
| 223007 | 0.36 mm to 0.36 mm ProteCol PEEK ferrules PK5 |

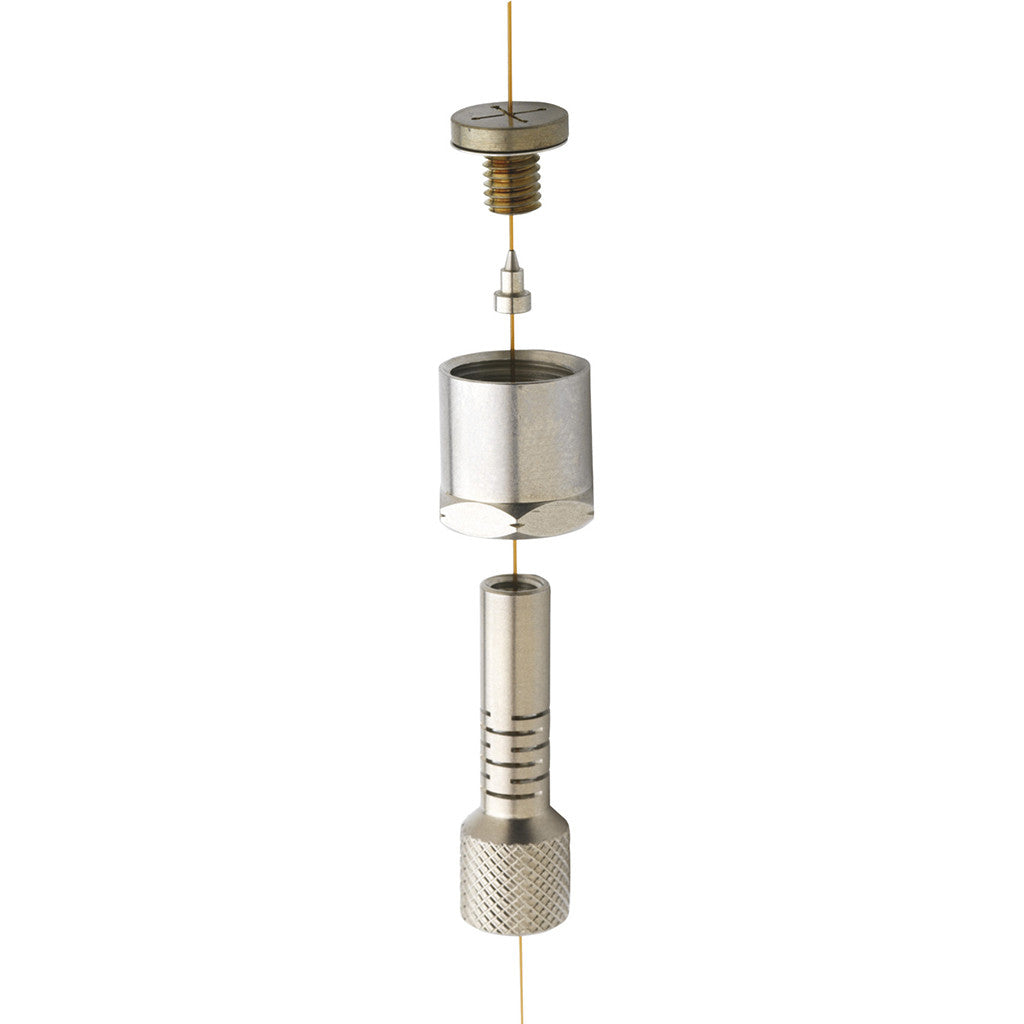

Part Number List - SilTite FingerTite® GC ferrules
Download: Part Number List - SilTite FingerTite® GC ferrules [PDF]
Also see: Product Data Sheet - SilTite FingerTite® GC ferrules
Find in table:
| Part number | Part description and detail |
|---|---|
| 073630 | SilTite FingerTite ferrule 0.4 mm hole |
| 073631 | SilTite FingerTite ferrule 0.5 mm hole |
| 073632 | SilTite FingerTite ferrule 0.7 mm hole |
| 073633 | SilTite FingerTite blanking ferrule |
| 073636 | SilTite FingerTite female nut |
| 073625 | SilTite FingerTite generic starter kit |
| 0736100 | SilTite FingerTite starter kit (5 x female nuts, 10 x 0.4 mm hole ferrules, 1 x measuring tool) |
| 0736105 | SilTite FingerTite starter kit (5 x female nuts, 10 x 0.5 mm hole ferrules, 1 x measuring tool) |
| Agilent | |
| 073610 | SilTite FingerTite Agilent INJ/FID starter kit |
| 073611 | SilTite FingerTite Agilent capillary/FID starter kit |
| 073612 | SilTite FingerTite Agilent INJ/MS starter kit |
| 07361053 | SilTite FingerTite Agilent INJ/FID starter kit for use with 0.53 mm ID columns |
| 07361054 | SilTite FingerTite Agilent injector starter kit for use with 0.53 mm ID columns (10 x 0.7 mm ferrules) |
| 0736101 | SilTite FingerTite Agilent capillary adaptor |
| 0736102 | SilTite FingerTite Agilent MS adaptor |
| 0736103 | SilTite FingerTite Agilent FID adaptor (includes 2 graphite Vespel FID ferrules) |
| 0736104 | SilTite FingerTite Agilent injector adaptor (includes 2 base Seals) also suits Thermo 1300 injector |
| 073640 | SilTite FingerTite Agilent MS adaptor |
| ATAS | |
| 073651 | SilTite FingerTite ATAS OPTIC INJ starter kit |
| Bruker/Varian | |
| 073618 | SilTite FingerTite Bruker/Varian INJ/FID starter kit |
| 073619 | SilTite FingerTite Bruker/Varian INJ/MS starter kit (not for 220, 1200, 2000, or 4000 MS systems) |
| Shimadzu | |
| 073628 | SilTite FingerTite Shimadzu 17A INJ/FID starter kit |
| 073629 | SilTite FingerTite Shimadzu 17A INJ/MS starter kit |
| 073620 | SilTite FingerTite Shimadzu 2010 INJ/FID starter kit |
| 07362053 | SilTite FingerTite Shimadzu 2010 INJ/FID starter kit for use with 0.53 mm ID columns |
| 073621 | SilTite FingerTite Shimadzu 2010 INJ/MS starter kit |
| Thermo Scientific | |
| 073614 | SilTite FingerTite Thermo INJ (not for 1300 injector)/FID starter kit |
| 073615 | SilTite FingerTite Thermo INJ (not for 1300 injector)/ISQ starter kit |
| 073616 | SilTite FingerTite Thermo INJ (not for 1300 injector)/DSQ/DSQII starter kit |
| PerkinElmer | |
| 073622 | SilTite FingerTite PerkinElmer INJ/FID starter kit |
| 073623 | SilTite FingerTite PerkinElmer INJ/MS starter kit |
Part Number List - SilTite® GC ferrules
Download: Part Number List - SilTite® GC ferrules [PDF]
Also see: Product Data Sheet - SilTite® GC ferrules
Find in table:
| Part number | Part description and detail |
|---|---|
| For use on Varian/Bruker interface connections | |
| 073300 | SilTite metal - initial installation 0.10-0.25 mm ID columns for Varian/Bruker GCMS interface connections (10 ferrules, 2 nuts) |
| 073301 | SilTite metal - initial installation 0.32 mm ID columns for Varian/Bruker GCMS interface connections (10 ferrules, 2 nuts) |
| 073302 | SilTite metal - initial installation 0.45-0.53 mm ID columns for Varian/Bruker GCMS interface connections (10 ferrules, 2 nuts) |
| 073231 | SilTite metal nuts for Varian/Bruker GCMS interface connections, PK5 |
| For use on Shimadzu | |
| 073204 | SilTite metal - initial installation for Shimadzu QP5000/5050 standard MS interface for use with 0.10-0.25 mm ID columns (10 ferrules, 2 nuts) |
| 073205 | SilTite metal - initial installation for Shimadzu QP5000/5050 standard MS interface for use with 0.32 mm ID columns (10 ferrules, 2 nuts) |
| 073233 | SilTite metal nuts - for use with QP5000/5050 standard MS interface, PK5 |
| 073227 | SilTite ferrules for Shimadzu GC-2014, GC-2010, GC-17A and GC-14A detector/injectors, and QP5000/5050 standard MS interface (not for MS interfaces or QP2010 injector) for use with 0.10-0.25 mm ID columns, PK10 |
| 073228 | SilTite ferrules for Shimadzu GC-2014, GC-2010, GC-17A and GC-14A detector/injectors, and QP5000/5050 standard MS interface (not for MS interfaces or QP2010 injector) for use with 0.32 mm ID columns, PK10 |
| 073229 | SilTite ferrules for Shimadzu GC-2014, GC-2010, GC-17A and GC-14A detector/injectors, and QP5000/5050 standard MS interface (not for MS interfaces or QP2010 injector) for use with 0.45-0.53 mm ID columns, PK10 |
| 073350 | SilTite metal - initial installation for Shimadzu GC-2014, GC-2010, GC-17A and GC-14A detector/injectors, and QP5000/5050 standard MS interface (not for MS interfaces or QP2010 injector) for 0.10-0.25 mm ID columns (10 ferrules, 2 nuts) |
| 073351 | SilTite metal - initial installation for Shimadzu GC-2014, GC-2010, GC-17A and GC-14A detector/injectors, and QP5000/5050 standard MS interface (not for MS interfaces or QP2010 injector) for 0.32 mm ID columns (10 ferrules, 2 nuts) |
| 073352 | SilTite metal - initial installation for Shimadzu GC-2014, GC-2010, GC-17A and GC-14A detector/injectors, and QP5000/5050 standard MS interface (not for MS interfaces or QP2010 injector) for 0.45-0.53 mm ID columns (10 ferrules, 2 nuts) |
| 073232 | SilTite metal nuts, slotted, for Shimadzu GC-2014, GC-2010, GC-17A and GC-14A detector/injectors, and QP5000/5050 standard MS interface (not for MS interfaces or QP2010 injector), PK5 |
| For use on Thermo Scientific interface connections | |
| 073200 | SilTite metal - initial installation for GCMS interface connection for use with 0.10-0.25 mm ID columns (10 ferrules, 2 nuts) |
| 073201 | SilTite metal - initial installation for GCMS interface connection for use with 0.32 mm ID columns (10 ferrules, 2 nuts) |
| 073202 | SilTite metal - initial installation for GCMS interface connection for use with 0.45-0.53 mm ID columns, PK10 (10 ferrules, 2 nuts) |
| 073270 | SilTite metal - initial installation for Thermo Scientific TRACE 1300 series GC split/splitless injectors for use with 0.10-0.25 mm ID columns (10 ferrules, 2 nuts, 2 inlet base seals) |
| 073271 | SilTite metal - initial installation for Thermo Scientific TRACE 1300 series GC split/splitless injectors for use with 0.32 mm ID columns (10 ferrules, 2 nuts, 2 inlet base seals) |
| 073272 | SilTite metal - initial installation for Thermo Scientific TRACE 1300 series GC split/splitless injectors for use with 0.45-0.53 mm ID columns (10 ferrules, 2 nuts, 2 inlet base seals) |
| 073273 | SilTite metal - initial installation for Thermo Scientific TRACE 1300 series GC split/splitless injectors for use with 1/32" columns (10 ferrules, 2 nuts, 2 inlet base seals) |
| 073220 | Replacement SilTite metal ferrules for all Thermo Scientific GCMS interface connections for use with 0.10-0.25 mm ID columns, PK 10 |
| 073221 | Replacement SilTite metal ferrules for all Thermo Scientific GCMS interface connections for use with 0.32 mm ID columns, PK 10 |
| 073222 | Replacement SilTite metal ferrules for all Thermo Scientific GCMS interface connections for use with 0.45-0.53 mm ID columns, PK 10 |
| 073219 | Replacement SilTite metal ferrules for all Thermo Scientific GCMS interface connections for use with 1/32" columns, PK 10 |
| 073220 | Replacement SilTite metal ferrules for Thermo Scientific TRACE 1300 series GC split/splitless injectors for use with 0.10-0.25 mm ID columns, PK 10 |
| 073221 | Replacement SilTite metal ferrules for Thermo Scientific TRACE 1300 series GC split/splitless injectors for use with 0.32 mm ID columns, PK 10 |
| 073222 | Replacement SilTite metal ferrules for Thermo Scientific TRACE 1300 series GC split/splitless injectors for use with 0.45-0.53 mm ID columns, PK 10 |
| 073219 | Replacement SilTite metal ferrules for Thermo Scientific TRACE 1300 series GC split/splitless injectors for use with 1/32" columns, PK 10 |
| 073224 | Replacement SilTite metal nuts for all GCMS interface connections, PK5 |
| 073226 | Replacement SilTite metal nuts for Thermo Scientific TRACE 1300 series GC split/splitless injector, PK 5 |
| 073400 | Replacement SilTite base seals For Thermo Scientific TRACE 1300 series GC split/splitless injector, PK2 |
| 073401 | Replacement SilTite base seals For Thermo Scientific TRACE 1300 series GC split/splitless injector, PK10 |
| For use on PerkinElmer MS interface, Shimadzu QP5000/5050 wide bore MS interface, QP2010 injector and QP2010 standard MS interface, Agilent MS interface | |
| 073219 | SilTite ferrules for use on PerkinElmer MS interface, Shimadzu QP5000/5050 wide bore MS interface, QP2010 injector and QP2010 standard MS interface, Agilent MS interface for use with 1/32" columns, PK10 |
| 073220 | SilTite ferrules for use on PerkinElmer MS interface, Shimadzu QP5000/5050 wide bore MS interface, QP2010 injector and QP2010 standard MS interface, Agilent MS interface for use with 0.10-0.25 mm ID columns, PK10 |
| 073221 | SilTite ferrules for use on PerkinElmer MS interface, Shimadzu QP5000/5050 wide bore MS interface, QP2010 injector and QP2010 standard MS interface, Agilent MS interface for use with 0.32 mm ID columns, PK10 |
| 073222 | SilTite ferrules for use on PerkinElmer MS interface, Shimadzu QP5000/5050 wide bore MS interface, QP2010 injector and QP2010 standard MS interface, Agilent MS interfacefor for use with 0.45-0.53 mm ID columns, PK10 |
| 073223 | SilTite ferrules 1/16", for use on PerkinElmer MS interface, Shimadzu QP5000/5050 wide bore MS interface, QP2010 injector and QP2010 standard MS interface, Agilent MS interface, PK10 |
| 073200 | SilTite metal - initial installation for 0.10-0.25 mm ID columns (10 ferrules, 2 nuts) |
| 073201 | SilTite metal - initial installation for use on PerkinElmer MS interface, Shimadzu QP5000/5050 wide bore MS interface, QP2010 injector and QP2010 standard MS interface, Agilent MS interface for use with 0.32 mm ID columns (10 ferrules, 2 nuts) |
| 073202 | SilTite metal - initial installation for use on PerkinElmer MS interface, Shimadzu QP5000/5050 wide bore MS interface, QP2010 injector and QP2010 standard MS interface, Agilent MS interface for use with 0.45-0.53 mm ID columns (10 ferrules, 2 nuts) |
| 073203 | SilTite metal - initial installation 1/16" for use on PerkinElmer MS interface, Shimadzu QP5000/5050 wide bore MS interface, QP2010 injector and QP2010 standard MS interface, Agilent MS interface (10 ferrules, 2 nuts) |
| 073224 | SilTite metal nuts 10/32" 0.8 mm ID for use on PerkinElmer MS interface, Shimadzu QP5000/5050 wide bore MS interface, QP2010 injector and QP2010 standard MS interface, Agilent MS interface, PK5 |
| 073225 | SilTite metal nuts 10/32" 1/16" ID for use on PerkinElmer MS interface, Shimadzu QP5000/5050 wide bore MS interface, QP2010 injector and QP2010 standard MS interface, Agilent MS interface, PK5 |
Product Data Sheet - ProteCol® HPLC unions
Download: Product Data Sheet - ProteCol® HPLC unions [PDF]
Also see: Part Number List - ProteCol® HPLC unions
View full product details
