SGE Gooseneck Inlet Liners

Spot the Difference in the SGE Lineup!

The SGE inlet liner range aims to make it simple for all gas chromatographers to select the correct liner. Choosing the right inlet liner and injection parameters can increase peak areas and reduce detection limits by up to 300%.

Easy to choose - color coded by geometry to simplify your selection.
Easy to use - contains o-rings so you're ready to go.
Confidence in your analysis - certified deactivation.

Features and benefits

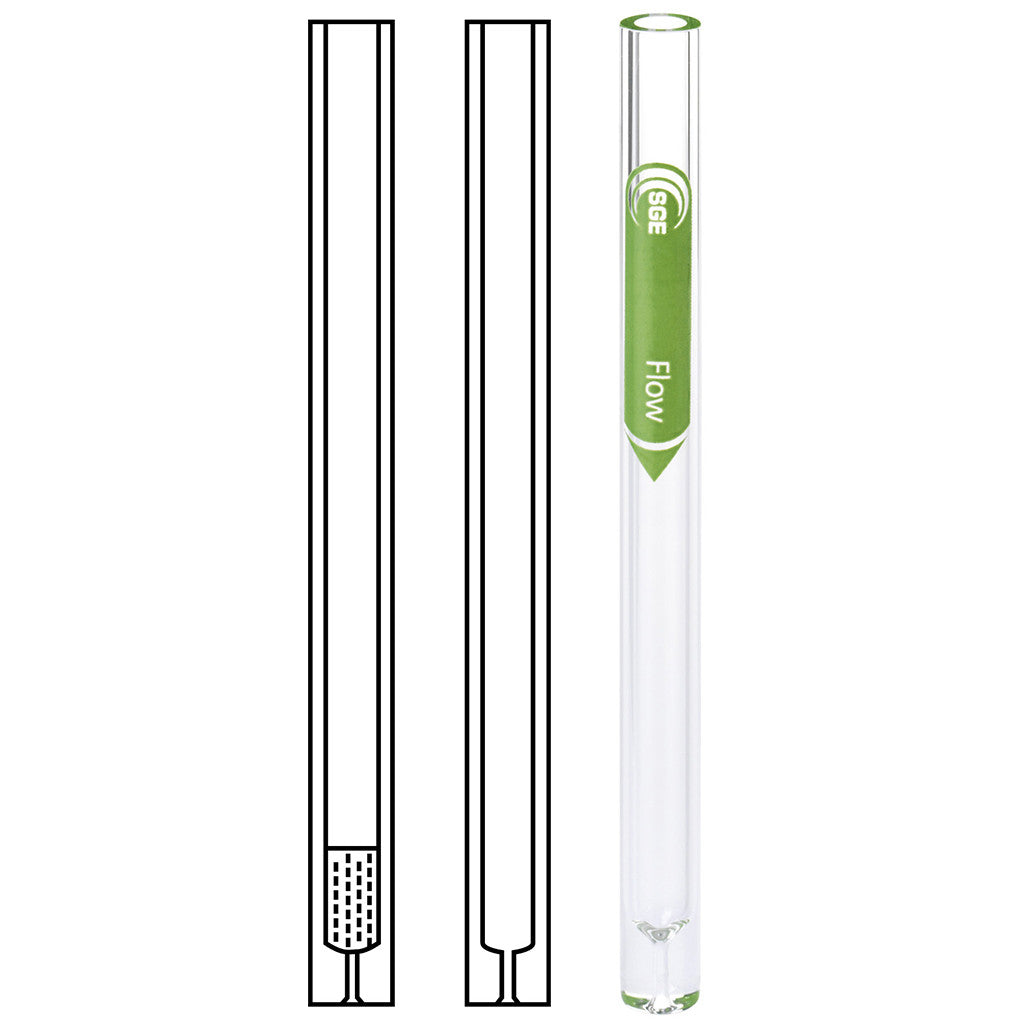

A bottom taper focuses sample onto the head of the column and minimizes sample contact with metal parts of the inlet.
A taper at the top aids in minimizing sample flashback.
Remember – the addition of quartz wool to your inlet liner promotes mixing of analytes, aids the vaporization of liquid samples, works as a trap to collect non-volatile residue in the sample (i.e. protects capillary column from ‘dirty’ samples).
TI deactivated liners are optimized for EPA8270 method and are pre-fitted with an o-ring to minimize handling.
Color coded green.

Recommended applications

Taper/Gooseneck liners are recommended for the following sample or injection modes:

Trace level analysis
Active Samples
Split/Splitless injection types

Product specifications

Bottom Taper available for Agilent, PerkinElmer, Shimadzu, Thermo Scientific, and Varian/Bruker 1177 and 1078/1079 injectors.

Injector	Length (mm)	OD (mm)	ID(mm)
Agilent	78.5	6.3	4
Agilent	78.5	6.3	2.3
PerkinElmer	92	6.2	4
Shimadzu	99	5	3.4
Shimadzu	95	5	3.4
Thermo	105	8	5
Thermo	105	8	3
Thermo	78.5	6.3	4
Thermo	78.5	6.3	2.3
Varian/Bruker	78.5	6.3	4
Varian/Bruker	78.5	6.3	2.3
Varian/Bruker	54	5	3.4

Top Taper available for Agilent, PerkinElmer 8000 and Sigma Series, Thermo Scientific, and Varian/Bruker 1177, 1075/1077 and 1078/1079 injectors.

Injector	Length (mm)	OD (mm)	ID (mm)
Agilent	78.5	6.3	4
PerkinElmer	100	5	2
Shimadzu	99	5	3.4
Thermo	105	8	5
Thermo	78.5	6.3	4
Varian/Bruker	78.5	6.3	4
Varian/Bruker	72	6.3	4
Varian/Bruker	74	6.3	4
Varian/Bruker	74	6.3	2
Varian/Bruker	54	5	1.8/3.4

Gooseneck available for Agilent, Shimadzu, and Varian/Bruker 1177 injectors.

Injector	Length (mm)	OD (mm)	ID (mm)
Agilent	78.5	6.3	4
Agilent	78.5	6.3	2.3
Shimadzu	99	5	3.4
Shimadzu	95	5	3.4
Varian/Bruker	78.5	6.3	4
Varian/Bruker	78.5	6.3	2

Please refer to the part number list for more items.

Image representing SGE Gooseneck Inlet Liners

Inlet Liner Tapered with Quartz Wool Pre-fitted O-ring and TI Deactivation 4 mm ID, Length 78.5 mm PK1

Inlet Liners Gooseneck 2 mm ID, Length 78.5 mm PK5

Inlet Liners Gooseneck with Quartz Wool 4 mm ID, Length 78.5 mm PK25

Inlet Liners Gooseneck with Quartz Wool 4 mm ID, Length 78.5 mm PK5

Inlet Liners Tapered 4 mm ID, Length 78.5 mm PK25

Inlet Liners Tapered 4 mm ID, Length 78.5 mm PK5

Inlet Liners Tapered with Quartz Wool 4 mm ID, Length 78.5 mm PK25

Inlet Liners Tapered with Quartz Wool 4 mm ID, Length 78.5 mm PK5

Inlet Liners Tapered with Quartz Wool Pre-fitted O-ring and TI Deactivation 4 mm ID, Length 78.5 mm PK5

PerkinElmer Inlet Liners Tapered 4 mm ID, Length 92 mm PK5
