SGE Tapered FocusLiner Inlet Liners
Spot the Difference in the SGE Lineup!
The SGE inlet liner range aims to make it simple for all gas chromatographers to select the correct liner. Choosing the right inlet liner and injection parameters can increase peak areas and reduce detection limits by up to 300%.
- Easy to choose - color coded by geometry to simplify your selection.
- Easy to use - contains o-rings so you're ready to go.
- Confidence in your analysis - certified deactivation.
Features and benefits

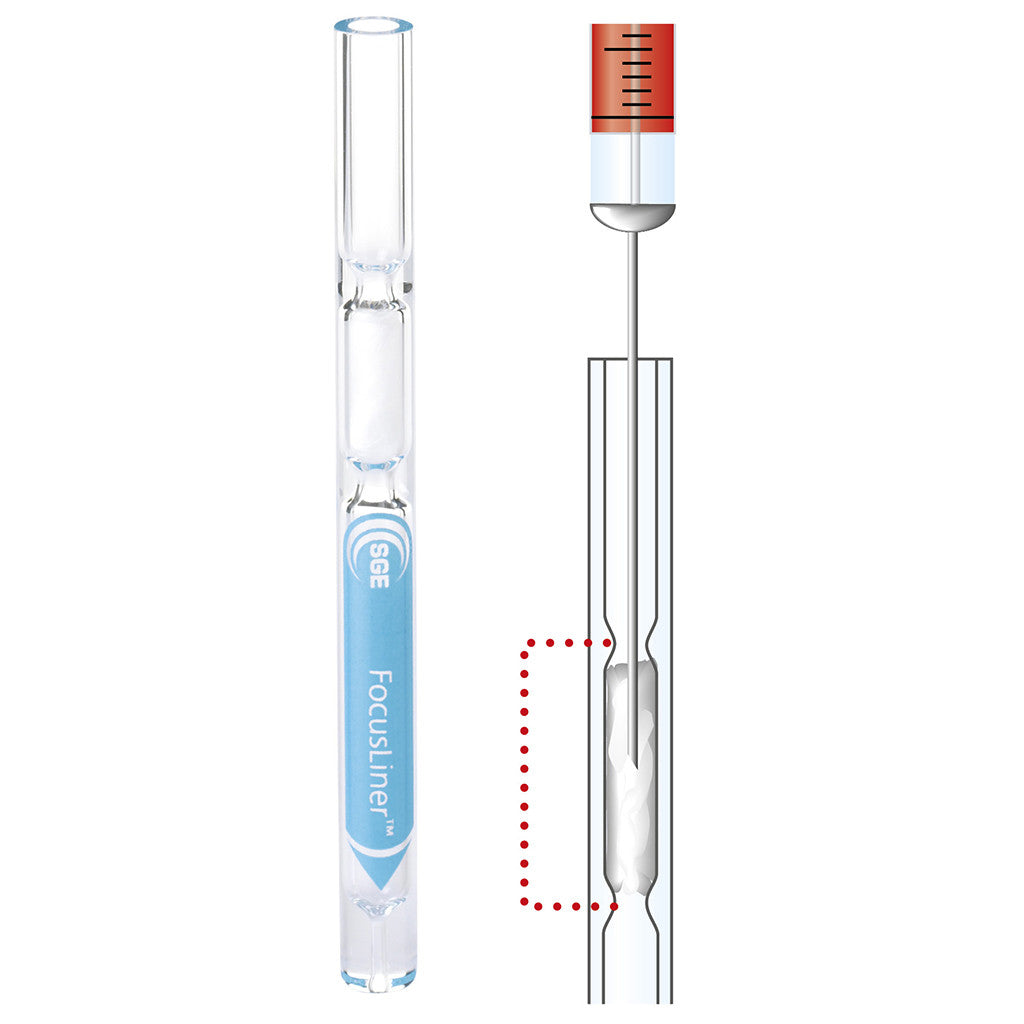

- Bottom taper focuses sample onto the head of the column and minimizes contact with metal parts of the inlet.
- A taper at the top aids in minimizing sample flashback.
- Ensures quartz wool remains in the correct position in the liner.
- Excellent reproducibility results from the wiping of the sample from the syringe needle and the prevention of droplet formation.
- Color coded aqua.
Recommended applications
The Tapered FocusLiner® is recommended for the following sample or injection modes:
- Trace level analysis.
- Splitless.
- Dirty sample.
- Wide boiling point range.
Product specifications
Tapered FocusLiner available for Agilent, PerkinElmer, Shimadzu, Thermo Scientific, and Varian/Bruker injectors.
|
Injector |
Length (mm) |
OD (mm) |
ID (mm) |
|
Agilent |
78.5 |
6.3 |
4 |
|
Agilent |
78.5 |
6.3 |
2.3 |
|
PerkinElmer |
92 |
6.2 |
4 |
|
Shimadzu |
99 |
5 |
3.4 |
|
Shimadzu |
95 |
5 |
3.4 |
|
Thermo |
105 |
8 |
5 |
|
Thermo |
78.5 |
6.3 |
4 |
|
Thermo |
78.5 |
6.3 |
2.3 |
|
Varian/Bruker |
78.5 |
6.3 |
2.3 |
|
Varian/Bruker |
54 |
5 |
3.4 |
|
Varian/Bruker |
72 |
6.3 |
4 |
More
Please refer to the part number list for more items.
Inlet Liners 2.3 mm ID Tapered FocusLiner, Length 78.5 mm PK25
Part number: 092115
$582.60
View full product details
Inlet Liners 2.3 mm ID Tapered FocusLiner, Length 78.5 mm PK5
Part number: 092111
$140.80
View full product details
Inlet Liners 4 mm ID Tapered FocusLiner, Length 78.5 mm PK25
Part number: 092011
$566.20
View full product details
Inlet Liners 4 mm ID Tapered FocusLiner, Length 78.5 mm PK5
Part number: 092003
$144.90
View full product details
Part number: 09209525
$623.70PerkinElmer Inlet Liners 4 mm ID Tapered FocusLiner, Length 92 mm PK25
Part number: 09209525
$623.70
View full product details
PerkinElmer Inlet Liners 4 mm ID Tapered FocusLiner, Length 92 mm PK5
Part number: 092095
$166.50
View full product details
SGE Tapered FocusLiner Inlet Liners
Part number: 092003
$144.90
Spot the Difference in the SGE Lineup!
The SGE inlet liner range aims to make it simple for all gas chromatographers to select the correct liner. Choosing the right inlet liner and injection parameters can increase peak areas and reduce detection limits by up to 300%.
- Easy to choose - color coded by geometry to simplify your selection.
- Easy to use - contains o-rings so you're ready to go.
- Confidence in your analysis - certified deactivation.
Features and benefits
- Bottom taper focuses sample onto the head of the column and minimizes contact with metal parts of the inlet.
- A taper at the top aids in minimizing sample flashback.
- Ensures quartz wool remains in the correct position in the liner.
- Excellent reproducibility results from the wiping of the sample from the syringe needle and the prevention of droplet formation.
- Color coded aqua.
Recommended applications
The Tapered FocusLiner® is recommended for the following sample or injection modes:
- Trace level analysis.
- Splitless.
- Dirty sample.
- Wide boiling point range.
Product specifications
Tapered FocusLiner available for Agilent, PerkinElmer, Shimadzu, Thermo Scientific, and Varian/Bruker injectors.
|
Injector |
Length (mm) |
OD (mm) |
ID (mm) |
|
Agilent |
78.5 |
6.3 |
4 |
|
Agilent |
78.5 |
6.3 |
2.3 |
|
PerkinElmer |
92 |
6.2 |
4 |
|
Shimadzu |
99 |
5 |
3.4 |
|
Shimadzu |
95 |
5 |
3.4 |
|
Thermo |
105 |
8 |
5 |
|
Thermo |
78.5 |
6.3 |
4 |
|
Thermo |
78.5 |
6.3 |
2.3 |
|
Varian/Bruker |
78.5 |
6.3 |
2.3 |
|
Varian/Bruker |
54 |
5 |
3.4 |
|
Varian/Bruker |
72 |
6.3 |
4 |
More
Please refer to the part number list for more items.
- Product Data Sheet - SGE Tapered FocusLiner Inlet Liners [PDF]
- Part Number List - SGE Tapered FocusLiner Inlet Liners [PDF]
Shimadzu 2010/17A Inlet Liners 3.4 mm ID Tapered FocusLiner, Length 95 mm PK5
Part number: 092058
$156.20
View full product details
Shimadzu 2010/17A Inlet Liners 3.4 mm ID Tapered FocusLiner, Length 95 mm PK5
Part number: 092068
$158.30
View full product details
