CRS Vespel®-graphite GC ferrules

Home   CRS Vespel®-graphite GC ferrules   Page 1 of 1
CRS GC ferrules

We manufacture a wide variety of standard and specialty ferrules and seals used in gas chromatographs and other instruments. The commonly used materials are Vespel®, PTFE, and exfoliated graphite.

The standard ferrule product line is used to seal tubing and capillaries to standard compression fittings in a variety of sizes.

Features and benefits

  • Made from polyimide/graphite blended compounds.
  • They seal with minimal torque and can be reused and repositioned along capillary columns if not over-compressed in the fitting.
  • Due to slight shrinking at high temperatures, they must be retightened after initial temperature cycles to avoid leaks.
  • Two types of Vespel/graphite are commonly used, one with 40% graphite and one with 15% graphite.

Recommended applications

They are ideal for GC/MS interface applications because they are non-porous to oxygen.

Product specifications

Graphite increases high-temperature tolerance, and reduces sticking and shrinking. They can be reused and repositioned along capillary columns if not over-compressed in the fitting. The 60/40 V/G blend will have the lowest chance of bonding. Because they are softer than 100% Vespel, only gentle force is needed to compress them and form a seal. They are both rated to 400°C.

The 60/40 blend has enhanced wear resistance, lower friction, and improved dimensional and anti-oxidation stability compared with the 85/15 blend, which is harder.

More

Please refer to the part number list for more items.

For technical information such as manuals and MSDS please visit chromres.com/resources.

More information

Vespel® is a registered trademark of DuPont.



Product Data Sheet - CRS Vespel®-graphite GC ferrules

Download: Product Data Sheet - CRS Vespel®-graphite GC ferrule [PDF]

Also see: Part Number List - CRS Vespel®-graphite GC ferrule

View full product details


Part Number List - CRS Vespel®-graphite GC ferrules

Also see: Product Data Sheet - CRS Vespel®-graphite GC ferrule

Find in table:

Part number Part description and detail
60% Vespel / 40% graphite
2131XX 1/16" GC ferrule (no-hole) 60% Vespel / 40% graphite PK10
213103 1/16" GC ferrule 0.3 mm ID (long) 60% Vespel / 40% graphite PK10
213163 1/16" GC ferrule 0.3 mm ID Agilent style 60% Vespel / 40% graphite PK10
213104 1/16" GC ferrule 0.4 mm ID (long) 60% Vespel / 40% graphite PK10
213124 1/16" GC ferrule 0.4 mm ID (long) two-hole 60% Vespel / 40% graphite PK10
213164 1/16" GC ferrule 0.4 mm ID Agilent style 60% Vespel / 40% graphite PK10
213105 1/16" GC ferrule 0.5 mm ID (long) 60% Vespel / 40% graphite PK10
213125 1/16" GC ferrule 0.5 mm ID (long) two-hole 60% Vespel / 40% graphite PK10
213165 1/16" GC ferrule 0.5 mm ID Agilent style 60% Vespel / 40% graphite PK10
213106 1/16" GC ferrule 0.6 mm ID (long) 60% Vespel / 40% graphite PK10
213108 1/16" GC ferrule 0.8 mm ID (long) 60% Vespel / 40% graphite PK10
213168 1/16" GC ferrule 0.8 mm ID Agilent style 60% Vespel / 40% graphite PK10
213110 1/16" GC ferrule 1.0 mm ID (long) 60% Vespel / 40% graphite PK10
213100 1/16" GC ferrule 1/16" ID (long) 60% Vespel / 40% graphite PK10
2132XX 1/8" GC ferrule (no-hole) 60% Vespel / 40% graphite PK10
213204 1/8" GC ferrule 0.4 mm ID 60% Vespel / 40% graphite PK10
213205 1/8" GC ferrule 0.5 mm ID 60% Vespel / 40% graphite PK10
213222 1/8" GC ferrule 0.5 mm ID two-hole 60% Vespel / 40% graphite PK10
213208 1/8" GC ferrule 0.8 mm ID 60% Vespel / 40% graphite PK10
213228 1/8" GC ferrule 0.8 mm ID two-hole 60% Vespel / 40% graphite PK10
213210 1/8" GC ferrule 1/16" ID 60% Vespel / 40% graphite PK10
213200 1/8" GC ferrule 1/8" ID 60% Vespel / 40% graphite PK10
2134XX 1/4" GC ferrule (no-hole) 60% Vespel / 40% graphite PK10
213404 1/4" GC ferrule 0.4 mm ID 60% Vespel / 40% graphite PK10
213405 1/4" GC ferrule 0.5 mm ID 60% Vespel / 40% graphite PK10
213408 1/4" GC ferrule 0.8 mm ID 60% Vespel / 40% graphite PK10
213410 1/4" GC ferrule 1/16" ID 60% Vespel / 40% graphite PK10
213420 1/4" GC ferrule 1/8" ID 60% Vespel / 40% graphite PK10
213406 1/4" GC ferrule 6 mm ID 60% Vespel / 40% graphite PK10
213400 1/4" GC ferrule 1/4" ID 60% Vespel / 40% graphite PK10
213800 1/2" GC ferrule 1/2" ID 60% Vespel / 40% graphite PK5
85% Vespel / 15% graphite
2151XX 1/16" GC ferrule (no-hole) 85% Vespel / 15% graphite PK10
215103 1/16" GC ferrule 0.3 mm ID (long) 85% Vespel / 15% graphite PK10
215104 1/16" GC ferrule 0.4 mm ID (long) 85% Vespel / 15% graphite PK10
215124 1/16" GC ferrule 0.4 mm ID (long) two-hole 85% Vespel / 15% graphite PK10
215164 1/16" GC ferrule 0.4 mm ID Agilent style 85% Vespel / 15% graphite PK10
215105 1/16" GC ferrule 0.5 mm ID (long) 85% Vespel / 15% graphite PK10
215125 1/16" GC ferrule 0.5 mm ID (long) two-hole 85% Vespel / 15% graphite PK10
215165 1/16" GC ferrule 0.5 mm ID Agilent style 85% Vespel / 15% graphite PK10
215106 1/16" GC ferrule 0.6 mm ID (long) 85% Vespel / 15% graphite PK10
215108 1/16" GC ferrule 0.8 mm ID (long) 85% Vespel / 15% graphite PK10
215168 1/16" GC ferrule 0.8 mm ID Agilent style 85% Vespel / 15% graphite PK10
215110 1/16" GC ferrule 1.0 mm ID (long) 85% Vespel / 15% graphite PK10
215100 1/16" GC ferrule 1/16" ID (long) 85% Vespel / 15% graphite PK10
2152XX 1/8" GC ferrule (no-hole) 85% Vespel / 15% graphite PK10
215204 1/8" GC ferrule 0.4 mm ID 85% Vespel / 15% graphite PK10
215205 1/8" GC ferrule 0.5 mm ID 85% Vespel / 15% graphite PK10
215208 1/8" GC ferrule 0.8 mm ID 85% Vespel / 15% graphite PK10
215210 1/8" GC ferrule 1/16" ID 85% Vespel / 15% graphite PK10
215200 1/8" GC ferrule 1/8" ID 85% Vespel / 15% graphite PK10
2154XX 1/4" GC ferrule (no-hole) 85% Vespel / 15% graphite PK10
215400 1/4" GC ferrule 1/4" ID 85% Vespel / 15% graphite PK10
View full product details

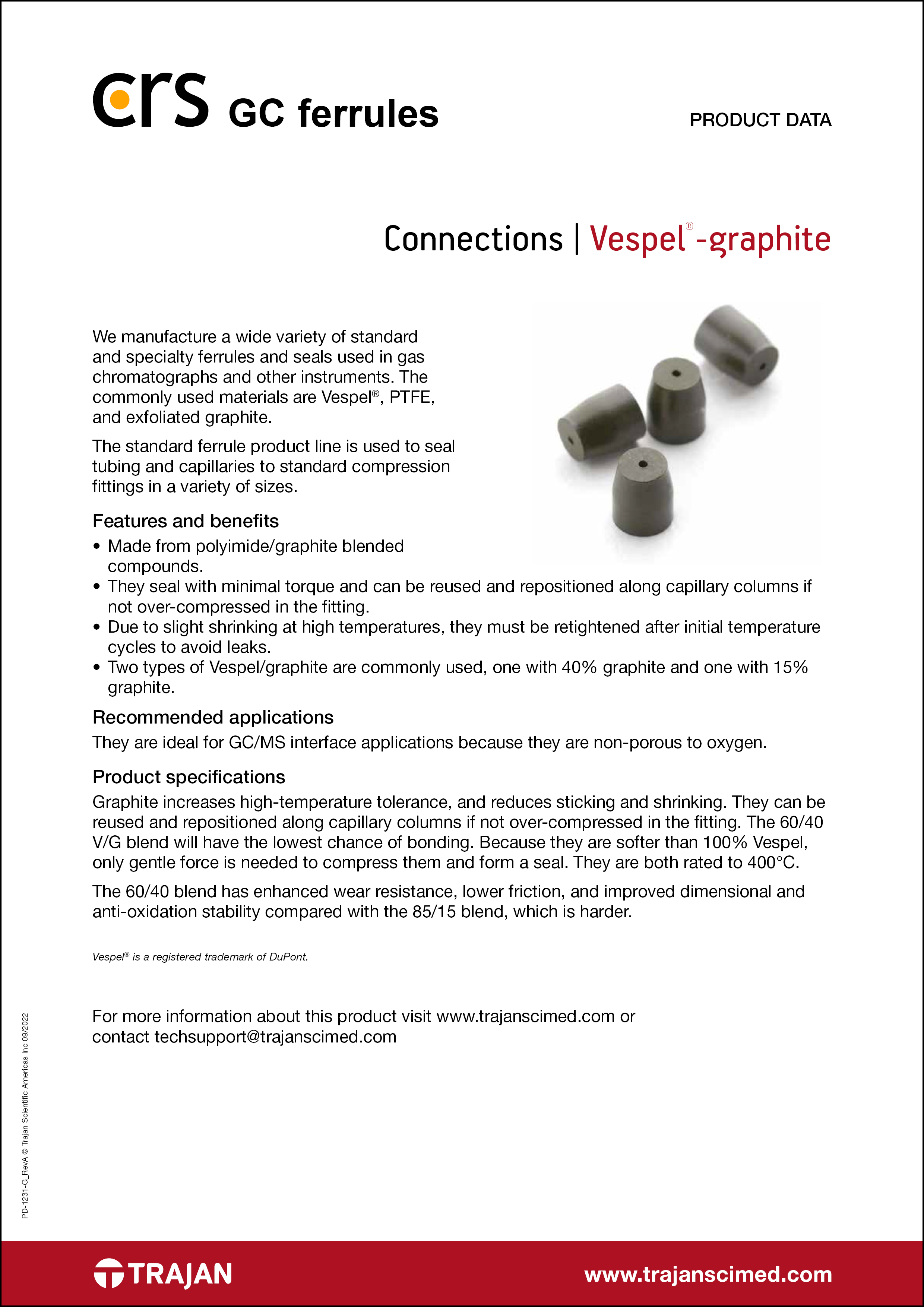

Brochure - CRS GC ferrules

Download: Brochure - CRS GC ferrules [PDF]

View full product details
