GC Nuts
The design of the nuts and fittings are unique in that the fitting is flat faced and the point of the ferrule is towards the nut. This makes the system more robust since the angled portion of the fitting cannot be damaged. For more information, please refer to Product Data Sheet - GC Unions [PDF].
Features and benefits
GC nuts are made in a variety of:- Materials: stainless steel, nickel plated brass and brass.
- Lengths: standard (uses short ferrules) and extended (uses standard length ferrules).
- Tubing sizes: 1/16", 1/8" and 1/4" and mini-union.
- Hole sizes: regular or 1.2 mm for capillary columns.
- Configurations to complement the ferrule product range - regular, SilTite® range.
Product specifications
|
Description |
Use with tubing OD sizes |
|
GC Nut Standard Stainless Steel uses short ferrules |
1/8" |
|
GC Nut Standard Stainless Steel uses short ferrules |
1/16" |
|
GC Nut Extended Stainless Steel uses standard length ferrules |
1/16" |
|
GC Nut Extended Stainless Steel uses standard length ferrules |
Up to 1.2 mm |
|
GC Nut Extended Brass uses standard length ferrules |
Up to 1.2 mm |
|
Stainless Steel Male Nut |
1/16" |
|
SilTite FingerTite Female Nut |
Fused silica tubing |
|
Nut Mini-nut for mini-unions from SGE |
Up to 0.68 mm |
More
Please refer to the part number list for more items.
Application Note - Analysis of nutmeg oil
BPX5
Download: Application Note - Analysis of nutmeg oil [PDF]
Components
- α-Thujene
- α-Pinene
- Camphene
- Sabinene
- β-Pinene
- Myrcene
- α-Phellandrene
- δ-3-Carene
- α-Terpinene
- p-Cymene
- Limonene
- β-Phellandrene
- α-Terpinene
- trans-Sabinene hydrate
- Terpinolene
- Terpinen-4-ol
- 1-α-Terpineol
- Safrole
- α-Copaene
- Myristcin
- Elemicin
Application Note - Analysis of nutmeg oil
SolGel-WAX™
Download: Application Note - Analysis of nutmeg oil [PDF]
Components
- α-Pinene
- α-Phellandrene
- β-Pinene
- Sabinene
- Myrcene
- Limonene
- γ-Terpinene
- p-Cymene
- Terpinen-4-ol
- Safrole
- Myristicin
Brochure - Nutrition automation system
Workflow solutions for nutritional analysis
Your solution for high throughput nutritional analysis
Download: Brochure - Nutrition automation system [PDF]
View full product details
Brochure - Nutrition test for omega-3 in pregnancy
Workflow solutions for nutritional analysis
Download: Brochure - Nutrition test for omega-3 in pregnancy [PDF]
View full product details
Brochure - Nutrition tests for corporate wellness
Workflow solutions for nutritional analysis
Download: Brochure - Nutrition tests for corporate wellness[PDF]
View full product details
Brochure - Nutrition tests for fatty acid analysis
Workflow solutions for nutritional analysis
Download: Brochure - Nutrition tests for fatty acid analysis [PDF]
View full product details
Brochure - Nutrition tests for health insurance
Workflow solutions for nutritional analysis
Download: Brochure - Nutrition tests for health insurance[PDF]
View full product details
Brochure - Nutrition tests for pathology laboratories
Workflow solutions for nutritional analysis
Download: Brochure - Nutrition tests for pathology laboratories [PDF]
View full product details
Brochure - Nutrition tests for personalized nutrition
Workflow solutions for nutritional analysis
Download: Brochure - Nutrition tests for personalized nutrition[PDF]
View full product details
Brochure - Nutrition tests for research and clinical trials
Workflow solutions for nutritional analysis
Download: Brochure - Nutrition tests for research and clinical trials [PDF]
View full product details
Graphite Ferrules with 0.5 mm Hole For use with 1/8" Nuts on PerkinElmer Injectors & Detectors, PK10
$31.70
View full product details
Graphite Ferrules with 1.0 mm Hole For use with 1/8" Nuts on PerkinElmer Injectors & Detectors, PK10
$31.70
View full product details
Part Number List - GC nuts for fittings
Download: Part Number List - GC nuts for fittings [PDF]
Also see: Product Data Sheet - GC nuts for fittings
Find in table:
| Part number | Part description and detail |
|---|---|
| Stainless steel | |
| 103403 | 1/16" hole stainless steel, PK5 |
| 103408 | 1/16" hole (extended) stainless steel, PK5 |
| 1034030 | 1/16" hole male stainless steel nuts, PK5 |
| 103405 | 1/16" fittings x 1.2 mm hole (extended) stainless steel, PK5 |
| 103402 | 1/8" hole stainless steel, PK5 |
| 1034050 | 1/8" hole (extended) stainless steel, PK5 |
| 103407 | 1/4" hole (extended) stainless steel, PK5 |
| 103400 | 1.2 mm hole mini union stainless steel nut, PK5 |
| Brass (nickel plated) | |
| 1034085 | 1/16" x 1.2 mm hole (extended mini) brass (nickel plated), PK2 |
| 103406 | 1/16" x 1.2 mm hole (extended) brass (nickel plated), PK5 |
| 103404 | 1/16" hole brass (nickel plated), PK5 |
| SilTite metal nuts | |
| 073224 | SilTite metal nuts, female thread 10-32 ID hole, PK5 |
| 073226 | SilTite metal nuts for Agilent split/splitless injectors, PK5 |
| 073225 | SilTite metal nuts 10/32" female thread 1/16" ID hole, PK5 |
| 073232 | SilTite metal nuts - slotted female thread M5 for use on Shimadzu GC14A, GC17A, GC2010 and GC2014 detector/injectors, (not for MS interfaces or QP2010 injector), PK5 |
| 073233 | SilTite metal nuts - Shimadzu QP5000/5050 standard MS Interface, PK5 |
| 073230 | SilTite metal nuts for Thermo GCMS interface connections, PK5 |
| 073231 | SilTite metal nuts with 1/4-28 female thread for Varian/Bruker GCMS interface connections, PK5 |
| SilTite FingerTite | |
| 073636 | SilTite FingerTite female nut, PK5 |
Product Data Sheet - GC nuts for fittings
Download: Product Data Sheet - GC nuts for fittings [PDF]
Also see: Part Number List - GC nuts for fittings
View full product details

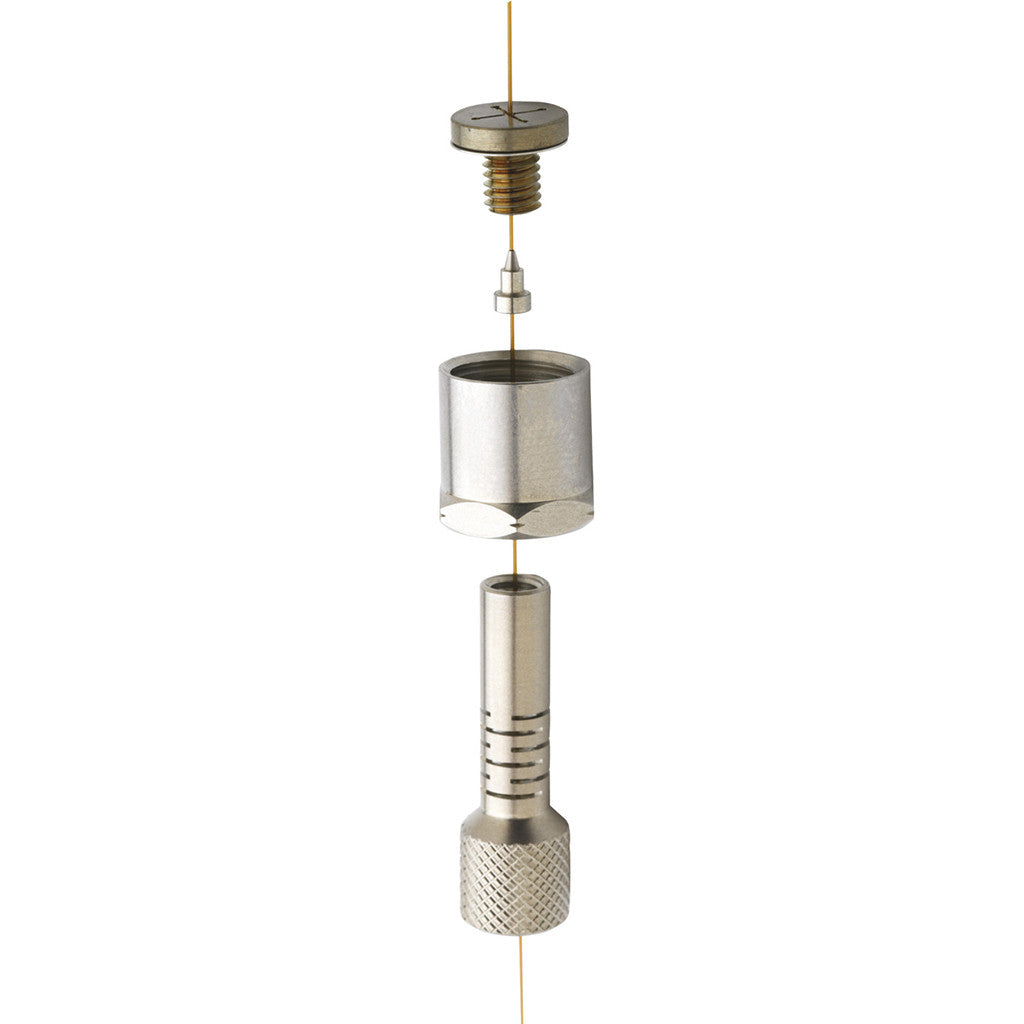

SilTite FingerTite Starter Kit (5 x Female Nuts, 10 x 0.4 mm Hole Ferrules, 1 x Measuring Tool)
