SolGel-WAX GC Columns

Part number: 054785

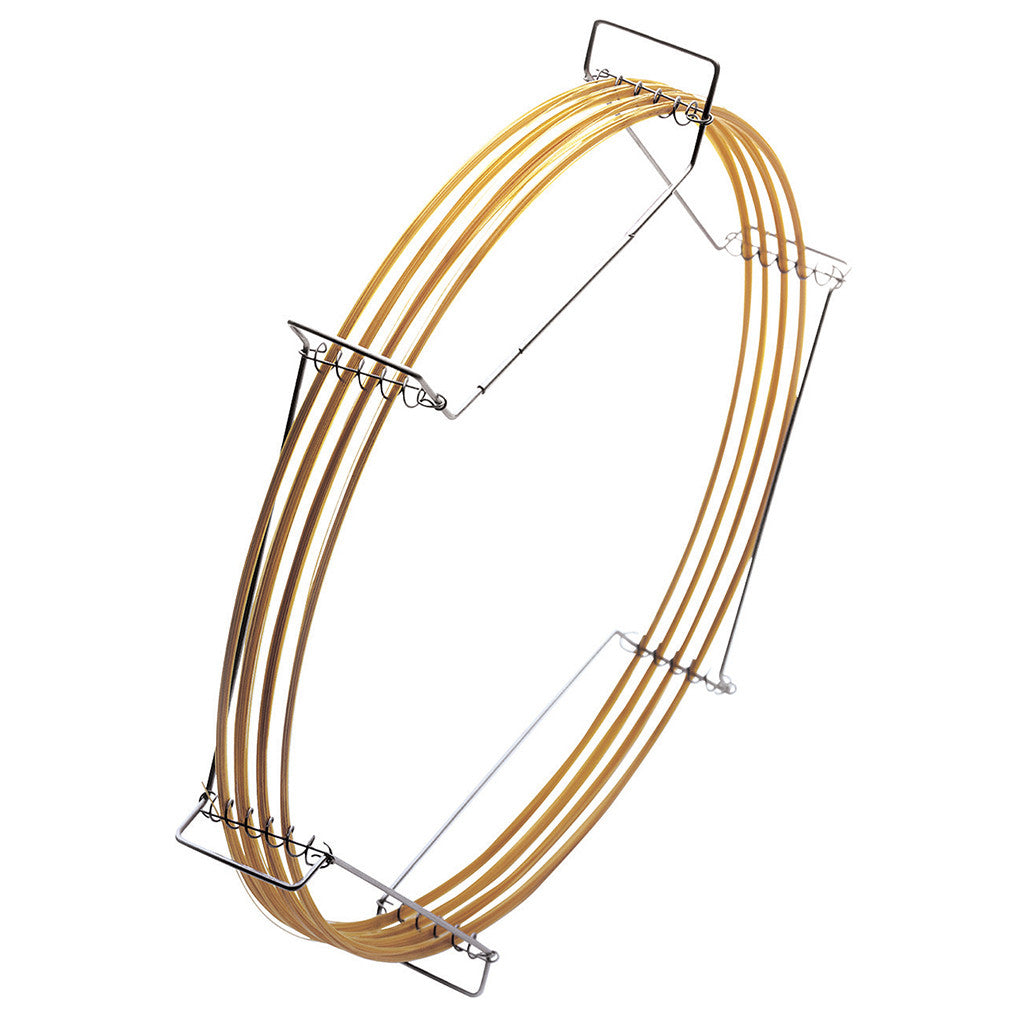

Image is representative (may not be specific item).

Length 30 m
Column ID 0.53 mm
Film Thickness 1.0 µm

Request quote

More than five decades of innovative phase technologies and unique fused silica production capabilities, together provide end-to-end separation solutions for all applications.

Features and benefits

  • Bonded polyethylene glycol.
  • Very robust high-temperature column.
  • Less susceptible to damage by oxygen than conventional wax phases.
  • Polar phase.
  • Low bleed and inert.
  • Bonded and cross-linked. Able to be solvent rinsed.

Recommended applications

Highly active compounds.

Product specifications

SolGel-WAX structure

Polyethylene Glycol (PEG) in a SolGel matrix. Suitable replacement for: DB-Wax, Rtx- Wax, Stabilwax, HP20M, HP-Wax, HP-INNOWax, Supelcowax-10, AT-Wax, Nukol, CP, Wax 52CB, VB-WAX, ZB-WAX.

Film thickness Operating temperature
0.1, 0.25, 0.5, 1 µm 30°C to 260/280°C

More

Please refer to the part number list for more items.
