Pure gas is a critical requirement in gas chromatography, spectroscopy, optics, lithography, and numerous other applications in manufacturing and analytical laboratories. The ZPure™ line of filters remove a wide range of contaminants to trace levels.
Features and benefits
- High efficiency in-line traps with outstanding capacity.
- High quality activated adsorbents for long purifier life and efficient contaminant removal.
- Various size and fitting configurations to fit existing installations.
- Filter lifetime is dependent on quality of incoming gas, and the flow rate.
- Individually leak tested.
Recommended applications
It can be used to remove hydrocarbons heavier than butane from inert gases, He, Ar, N2, H2, and clean dry air (CDA) to low ppb levels. It is recommended for most applications requiring hydrocarbon-free gas.
Product specifications
| ZPure HC | |||||||
|---|---|---|---|---|---|---|---|
| Volume | Function | Capacity (nominal-max) | Outlet concentration at nominal flow rate | Flow rate (nominal-max) | Max pressure | Dimensions | Fittings |
| 130 cc | Removes hydrocarbons (C5 and heavier) | 11 - 36 g | < 5 ppb | 1 - 10 SLPM | 68.9 bar / 1000 psi | 3.2 cm x 28 cm | 1/8" and 1/4" brass and stainless steel compression |
| 475 cc | 40 - 131 g | 3.7 - 36 SLPM | 3.8 cm x 57 cm | ||||
| 500 cc | 42 - 137 g | 3.8 - 38 SLPM | 13.8 bar / 200 psi | 5 cm x 35 cm | |||
| 750 cc | 63 - 206 g | 5.8 - 57 SLPM | 5 cm x 50 cm | ||||
1) The nominal hydrocarbon capacity is determined for an inlet impurity level of 500 ppm pentane.
2) The maximum hydrocarbon capacity is determined for an inlet impurity level of 2300 ppm pentane.
3) The nominal flow rate is the recommended flow rate for an estimated gas purifier life of 1 year. This assumes the following inlet impurities: 1 ppm hydrocarbons (C5 and heavier)
4) The maximum recommended flow rate is recommended for intermittent use only.
More information:
6 products
Instructions for use - ZPure™ HC filters with push-to-connect fittings
Collections: Analytical, CRS gas purifiers and filters, CRS ZPure™ HC (Hydrocarbon) gas filters, Literature - All, Literature - Analytical, Manuals, Select by instrument - Analytical, Support items, Trajan gas filters
Instructions for use - ZPure™ HC filters with quick connect fittings
Collections: Analytical, CRS gas purifiers and filters, CRS ZPure™ HC (Hydrocarbon) gas filters, Literature - All, Literature - Analytical, Manuals, Select by instrument - Analytical, Support items, Trajan gas filters
Instructions for use - ZPure™ HC filters with compression fittings
Collections: Analytical, CRS gas purifiers and filters, CRS ZPure™ HC (Hydrocarbon) gas filters, Literature - All, Literature - Analytical, Manuals, Select by instrument - Analytical, Support items, Trajan gas filters
Part Number List - CRS ZPure™ HC (Hydrocarbon) gas filter
Collections: All, Analytical, CRS gas purifiers and filters, CRS ZPure™ HC (Hydrocarbon) gas filters, Introducing the CRS range of products to the Trajan portfolio, Literature - All, Literature - Analytical, Part Number Lists, Select by instrument - Analytical, Support items, Trajan gas filters

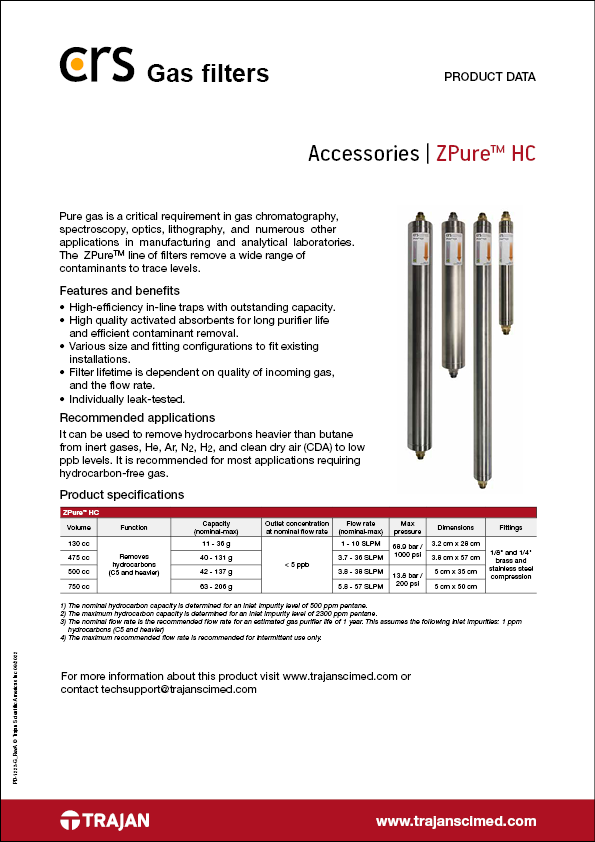

Product Data Sheet - CRS ZPure™ HC (Hydrocarbon) gas filter
